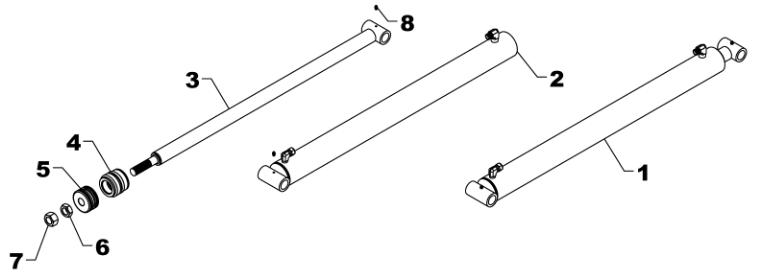

L-24 Cylinder Parts
Parts listed below are for cylinders with serial numbers ending in L24
| Ref # and Part # |
Description |
| 1. L-24 Discontinued please order L-80 |
Cylinder |
| 2. L-2401 Discontinued please order L-8001 & G-W |
Barrel |
| 3. L-2410 |
Ram |
| 4. G-L |
Gland |
| 5. P-B |
Piston |
| 6. HJN1614 |
Nut |
| 7. HFN1614 |
Nut |
| 8. ZER1805 |
Grease Fitting |
| 9 #4CK (Not Pictured) |
Seal Kit |
